InnoApp: Work Order Overview

Welcome to our InnoApp Work Orders! This is the next step to providing our users a single source of mobile access to InnoVint: we have completely moved beyond the limitations of the old iOS Work Order app.

So, what's included in the InnoApp work orders? Get the lowdown!

• Find your Work Orders

• Navigating Mobile Work Order Tasks

  • Task details and data input

• • Using dip charts

• • If you "Let cellar staff choose vessels"

• • Our Vessel Check-Off Feature

• Work Order Submission

• How do Work Orders Work Offline?
• Feedback, please!

Find your Work Orders

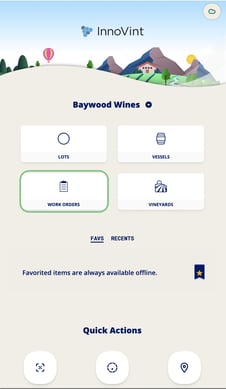

Find work orders via the Work Order explorer on your homescreen.

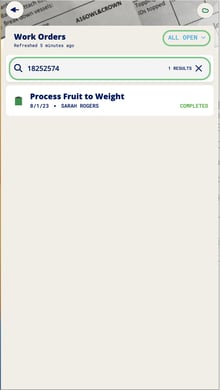

Use the Search bar to search by text (in the work order title) or work order number (any portion of it).

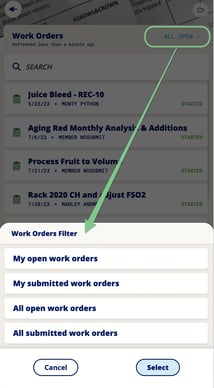

Use the Work Orders Filter at the top right of the explorer to choose between "My open work orders", "My submitted work orders", "All open work orders", or "All submitted work orders."

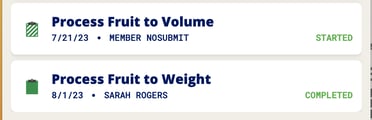

In the work order explorer, if any task in a work order is started, the work order will have a STARTED tag; if all tasks in a work order are completed, the work order will have a COMPLETED tag. If no tasks are started, then it will have a NOT STARTED tag.

What Tasks are included?

InnoApp allows you to complete and submit all standard work order tasks:

Addition, Analysis, Pull sample for ETS, Blend, Barrel Down, Rack and Return, Rack, Topping, Top Off, Transfer, Filter, Bottle, B2B Transfer In/Out, Bottle en Tirage (with the Sparkling module activated), Custom tasks, and all Harvest tasks (Receive Fruit, Process Fruit to Volume & Weight, Bleed/Saignee, Drain and Press, and Cap Management/Fermentation tasks).

Navigating Work Order Tasks

We've mirrored most of the functionality that exists on the Desktop App in our InnoApp work order tasks.

Within each work order, you can:

1. View work order details

Assigned user, due date, work order ID, owners (when relevant) and the included tasks.

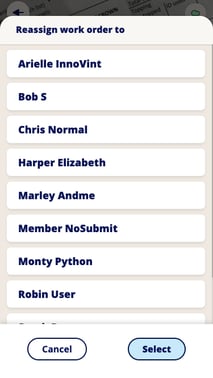

2. Re-assign work orders

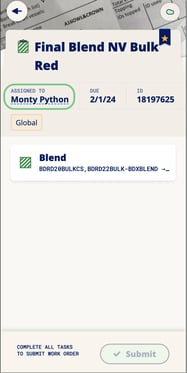

Tap on the "assigned to" field, and select a different user. If you do not see the blue dotted line below the existing user, then you do not have permissions to re-assign the work order:



Within each task, you can:

1. View the Task Details

After you click into your work order task, view the summaries of lots, vessels and volume changes.

This is where you can begin to input data on a specific task.

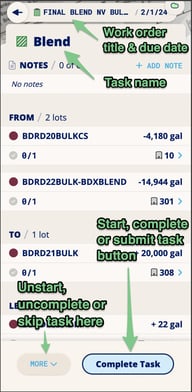

In this Task details screen, you will find your options to Start, Complete and Submit tasks at the bottom right of the screen. Use the More menu at the bottom left of the screen to SKIP a task if it is unstarted, to UNSTART a task if it is started, or to UNCOMPLETE a task, if it is completed. You will not see the More menu here after task submission.



2. Add Notes

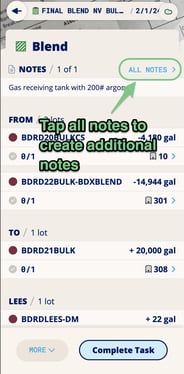

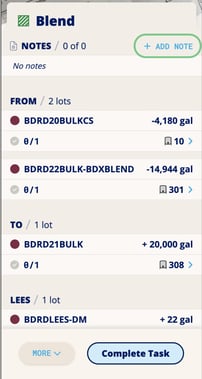

Add your written notes, or a photo note using + Add Note at the top of any task. Tap All Notes if you need to add more.



3. Lot and vessel data input

Tap any involved lot on the task details page to view a screen with the lot details. You will see the total requested volume change on the lot, and the number and type of vessels included for the lot.

Depending on the task, this is where you will update vessels (add or remove), input vessel volumes or additive quantities.

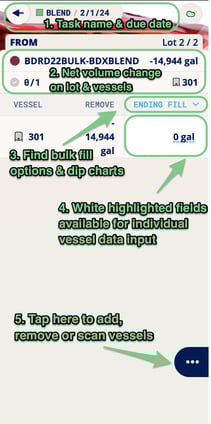

• • View task name and due date
  • See net lot volume change, the total number of involved vessels for the lot, and vessel check off summary
    • Tap any white cell to enter a specific volume per vessel
    • Use the Bulk fill option by tapping the blue header title in either Remove or Ending Fill columns, as applicable for the task
    • Are you using dip charts? Find them in the blue Ending Fill header link. See the next section for more details on accessing charts and entering tank measurements.
      Only white input fields are available for data entry per each vessel.
  • If you do not see white data entry fields, then data entry may not be available on the app, or the task maybe already completed.

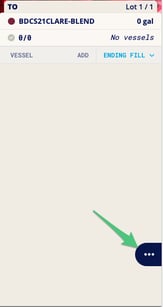

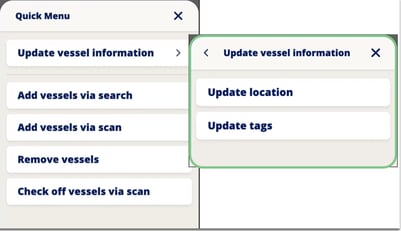

  • Tap on the 3 white dots at the bottom right Quick menu to remove vessels, add more vessels, scan to check off barrels, or update vessel information (available options depend on the task type).


    • Click on "Update vessel information" to quickly update vessel locations or tags on all vessels without re-scanning.  This information is updated as soon as it is saved, regardless of the task submission status.


4. Using dip charts

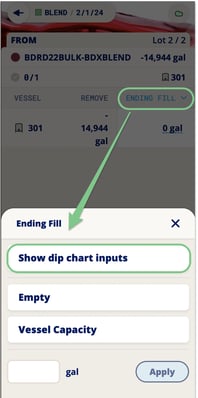

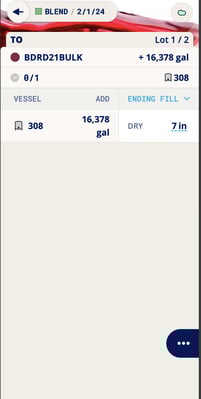

Find dip chart entry fields on either Unstarted or Started tasks by toggling on Show dip chart inputs from the Ending fill column bulk options menu.

• After toggling on dip chart inputs, InnoApp will automatically display the measurement based on the existing ending fill volume.
• Enter a new measurement and tap anywhere on the screen to see the calculated volumes update in the Add column, and in the total lot volume for the task.



• InnoApp will always display the type of dip (wet or dry), as well as a warning if you enter a measurement outside the range of the chart:

• After you tap on Complete task, the measurement will be saved as volume and you will not be able to view the current dip.
• While you are working with a task, the selected input type will be saved, i.e. if you toggle back to Show volume inputs, the next time you enter the task, the tank will show volumes.  If you toggle to Show dip chart inputs, the next time you enter the task, the tank will show measurements.



5. If you "Let cellar staff choose vessels"
If you created the work order with "Let cellar staff choose vessels," you will see the task detail for the lot look like this, with the link to Add vessels:

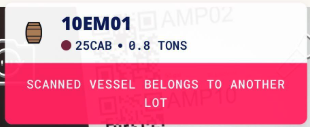

• Tapping Add vessels automatically opens the scanner for you to add vessels via QR code scanning.

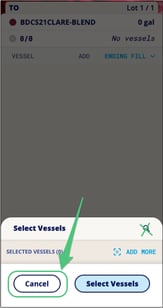

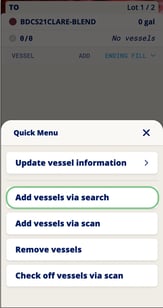

• If you want to search for vessels instead, tap Cancel on the scanner screen, and then Cancel on the Select Vessels screen. Next, select the Quick Menu to Add vessels via search:






6. Use the new Vessel Check Off Feature

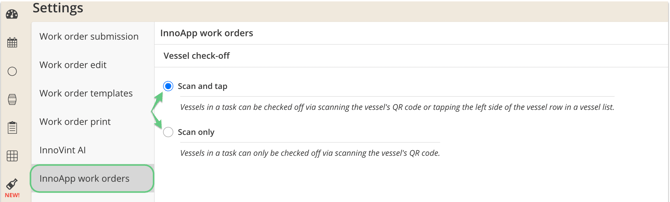

In the Lot details screen, use this tap or scan feature to allow cellar staff to track which vessels have been emptied, topped, filled or received additions.

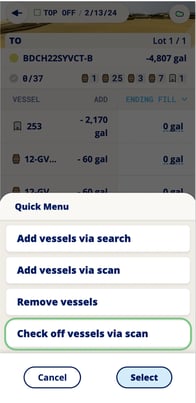

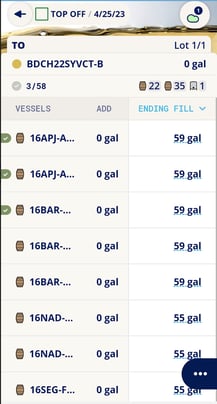

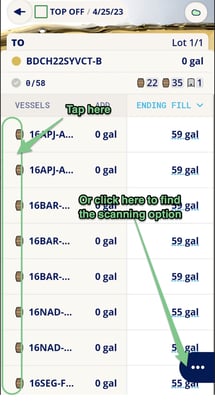

In the Lot details screen, check off vessels as completed by tapping the edge of the screen, to the left of the vessel, or use the more menu (three white dots) to access the "Scan to check off" function. You will see a green checkmark against individual vessels as they are checked off.

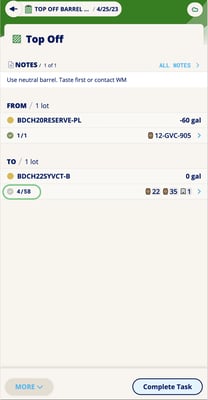

A green checkmark will display on the task summary screen once all vessels are checked off (i.e. BDCH20RESERVE-PL in the screenshot below) or you will see the number checked off of the total, (i.e. 4/58 with a grey checkmark for BDCH22SYVCT-B).

Work Order Submission

What can I submit?

Users can submit work order tasks and work orders on the App with the same flexibility as on the desktop app, using the Individual task submit model (our old iOS Work Order app requires you to submit all tasks at once).

When can I submit?

InnoApp work orders support all three submit "as of" variants: as of "Now", as of a "Specific date and time", and as of the "Task completion time".


These three variants are available at the task level to submit individual tasks, and also at the work order level, to submit the entire work order.



How do Work Orders work offline?

Get prepped before you walk into the cave!

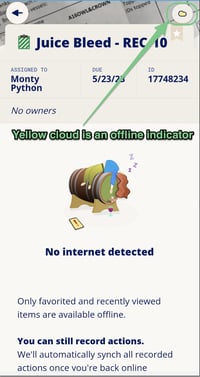

You can view and complete work orders offline, BUT you must either favorite the work order or have recently loaded it. Otherwise you will see this:

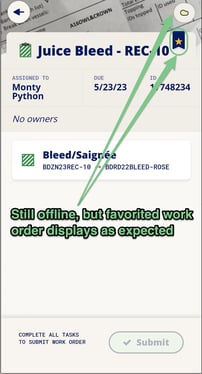

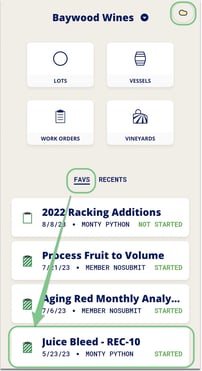

Add to your favorites by tapping the Favorite icon on the work order (or lot, or vessel, or vineyard!), and you'll see it in your favorites list on your home page, and it will also load as normal via the Work Order explorer:

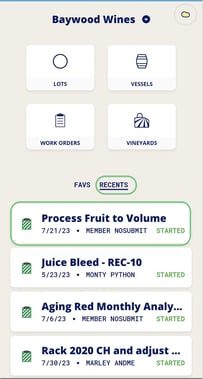

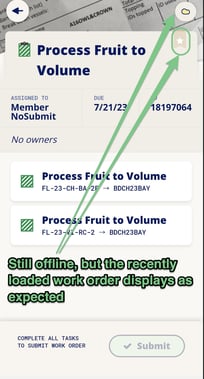

This also works if you fully loaded a work order and the tasks on your device recently (confirm it's there on your homescreen, under Recents), in order to access the work order offline.



Find out more about favorites and recents here.

Feedback

Tell us what you love and what you don't like - or what doesn't seem to work:

Please send this feedback via InnoApp, using the "Give Feedback" button at the bottom of the home screen.
