      InnoVint + VinWizard Integration

      This article covers:

      Requirements

      1. Contact VinWizard to verify subscription and integration capabilities.
      2. Reach out to support@innovint.us to get set up in InnoVint

      How it works

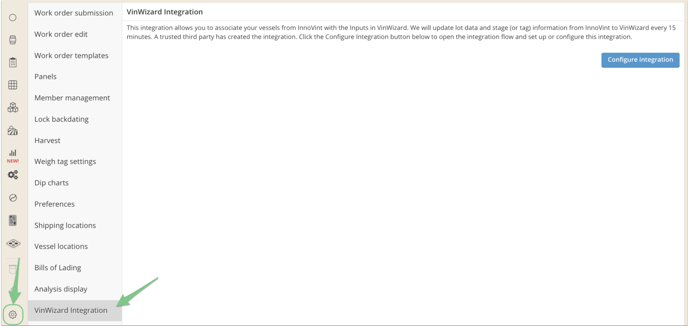

      1. Any admin will be able to access and adjust VinWizard configuration in InnoVint Settings.

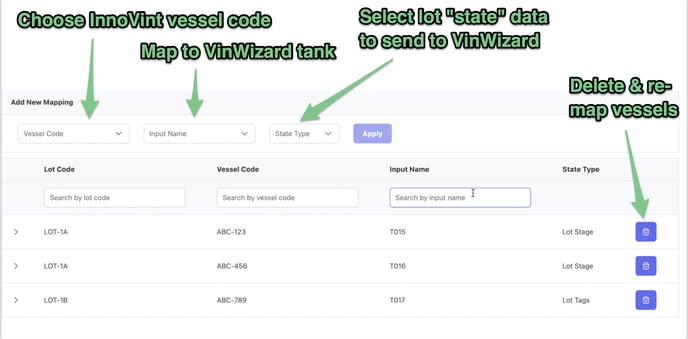

      2. Click on "Configure integration." Here, on the Configuration tab, you can "map" InnoVint vessel codes to the VinWizard tank code.

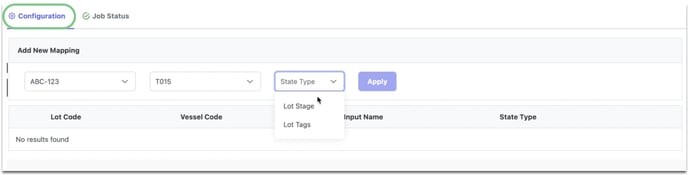

      3. After selecting the InnoVint and VinWizard vessel codes, choose the type of InnoVint data to link to VinWizard data: you may choose lot stage or lot tags.

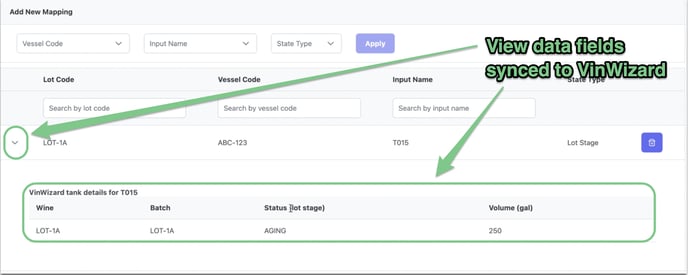

      4. Use the arrow next to the lot code to see the data being pushed into VinWizard: Wine (Innovint lot code), Batch (currently equal to the lot code), Status (either lot stage or lot tags), and Volume.

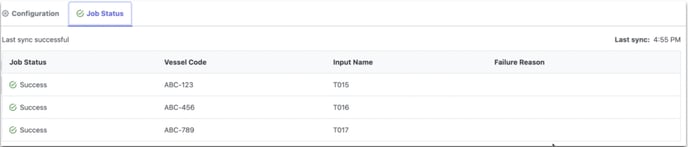

      5. Check out the Job Status tab to see what time the data last synced, and get alerted to any issues.


      If you have mapped all your vessels, and see the Failure Reason "Vessel not assigned to any lot," that just means your tanks are empty in InnoVint.  Once the vessels are filled in InnoVint, we will pick up the lot code and associated data to sync with VinWizard.



      FAQ

      Q: Can I map more than one vessel in InnoVint to VinWizard?

      A:  No, this integration provides a 1:1 mapping between vessels

      Q: How often does VinWizard get updated data from InnoVint?

      A: The integration is set to run every fifteen minutes.
